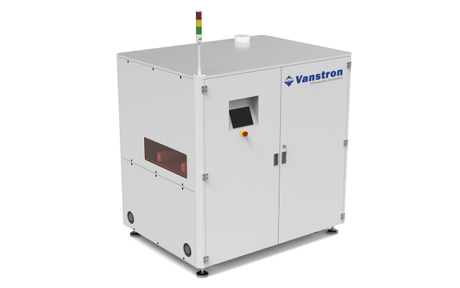

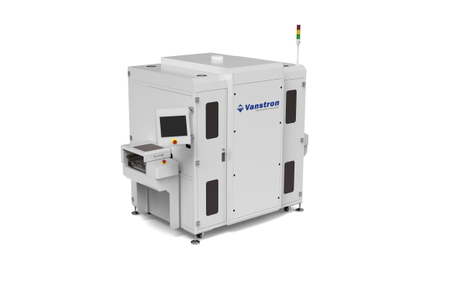

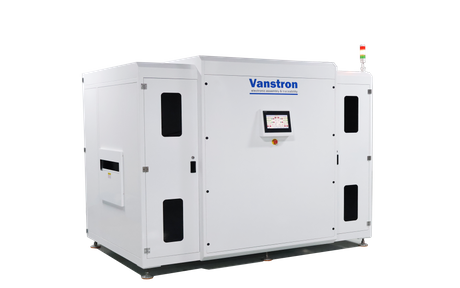

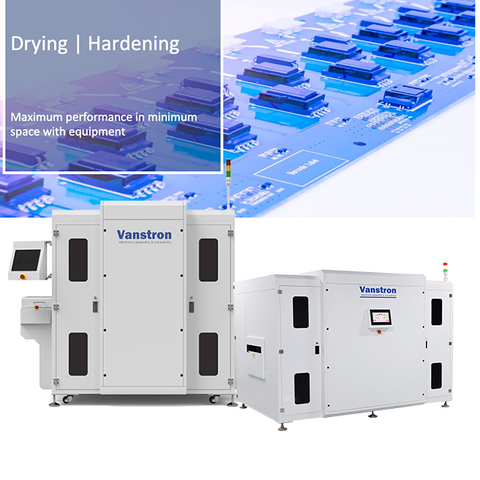

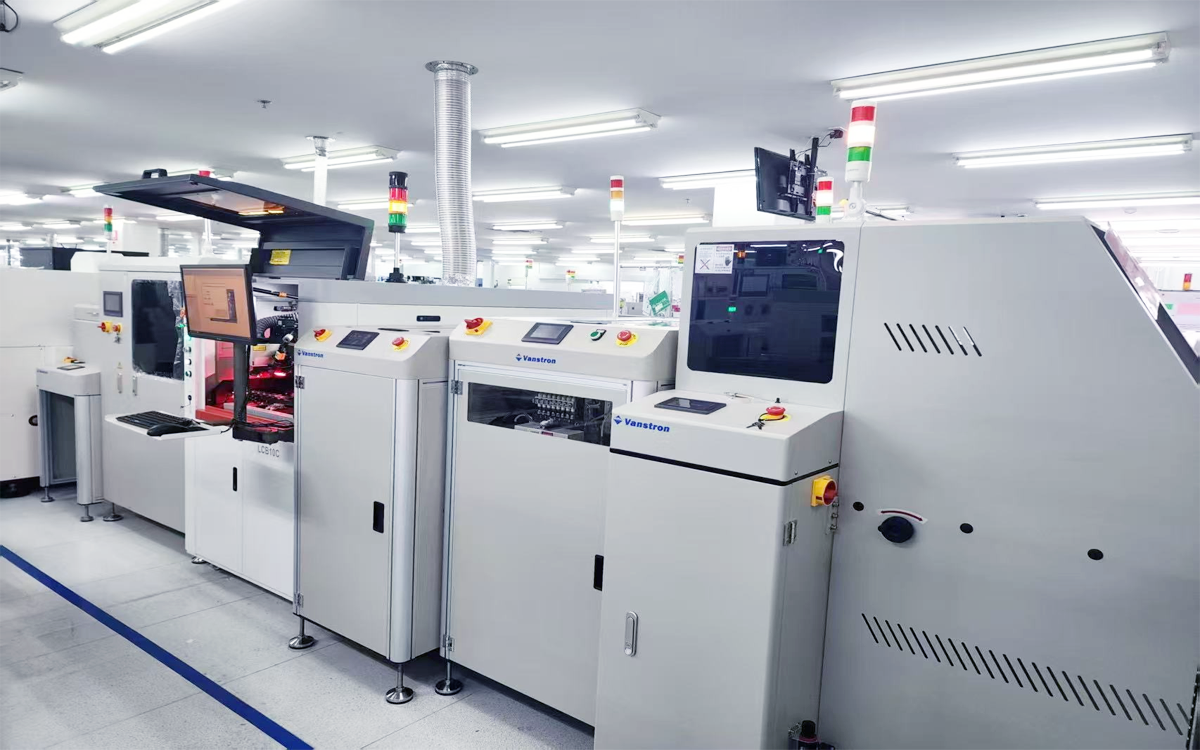

Inline Vertical Heating oven

Why we need an inline Vertical buffer drying oven?In-line, vertical automation of the epoxy cure process produces immediate, significant benefits in three areas

PCB Vertical cooling buffer

Description This vertical buffer is designed to have the function as FIFO/ LIFO and by-pass functions, which can be located between SMT machines to improve the working efficiency by buffering. This system is with the built-in magazine which has the special driving ability in each slot to transfer the boards to downstream system when the boards are called for. (Built-in magazine is not exchangeable). This vertical buffer is equipped with the cooling fans, and the PCB staying time in the buffer rack are available to set up for cooling length. It means even PCBs must reach the cooling time, and then when the downstream machine ask for PCB, the buffer will release the PCB . Features >PCB buffer capacity: 25 PCS >Working mode:FIFO( first in first out)/ LIFO( last in first out)/By-pass mode >Infeed conveyor as standard configuration  >Cooling fan: total 16 groups  >Cooling time length: setup in the software. >Conveyor width adjustment: motorized type  >Control method: PLC+ touch screen control+Taiwan servo motor >Machine working language: English  >Threshold signal to protect the boards in upstream reflow oven: Standard >PCB transfer method: 4mm ESD Flat belt to handle PCB >Magazine lifting system: precision servo motor system and servo driving system. >Lifting platform with PCBs weights handling capacity: above 100kg >Step pitch selectable: 1/2/3 pitch Step by software setting; >PCB size available: 530mm * 460mm ( L*W) as Max. >Indexing pitch: 22mm >PCB transfer flow direction: Left to right  >Conveyor width adjustment: motorized type  >Conveyor fixed rail: Front rail >Conveyor transfer heights: 900mm+/-50mm >Conveyor speed: 10m/min adjustable >Conveyor rail material: aluminum with special hardness treatment for long time usage and the strong PCB holding ability; >Machine working state display: LED signal tower + audible alarm >Robust lead screw rod and guide line rod to guarantee the heavy duty loading; >Safety standard: CE certificates  >Safety cover with interlock functions  Power: AC220V,50/60 HZ, 1 phase Air Pressure: 4-5kgf/cm2  Machine communication: SMEMA interface  Optional: RS-485 communication  Specifications   VBN-460XL-Cooling Machine dimension 1250mm *1150mm *1810mm ( L*W*H) Weight 650KG PCB size 500mm *460mm

NG OK vertical buffer for PCB

Description This unit is located after SPI/AOI machine to inspect NG boards in the line. The operator can CALL for NG boards stacked in the rack onto the 2TH layer of the conveyor part to inspect them visually while the good boards are being passed through to the downstream machine without any interruption. Features NG / OK boards can be smartly separated in each layer of conveyor. FIFO/LIFO, BY-PASS, NG Reject function selectable Mitsubishi PLC program control Servo motor system to improve the working efficiency Selectable pitch settings Tower-light display for machines working status. Built-in Rack structure Enclosed CE construction to improve the safety level Conveyor & rack adjustment by motorized Separately driven buffer conveyors 20 PCBs storage capacity Standard infeed conveyor with inspection station Use the friendly touch screen panel SMEMA compatible Optional: •Outfeed conveyor •RS-485 communication  Transfer heights 900mm+/-50mm Transfer direction Left to right Operation side Front of machine Fixed rail Front of machine Interface SMEMA Conveyor belts ESD flat belt PCB edge support 3mm Allowable components clearance 25mm below and above Slot distance 25mm Boards stock capacity 20 PCS Air supply 4-6 bar Safety CE certificates Control PLC Voltage 220V/ 110V , single phase, 50-60Hz Specifications   VBN-460XL Machine dimension 1250mm *1150mm *1810mm ( L*W*H) Weight 650KG PCB size 500mm *460mm

90 degree turning conveyor for PCB

Description This unit is used to transfer PCBs around corners for continued process flow. Available in clock wise or counter clock wise rotation, and by-pass mode. The PCB is accepted and transferred to the end of the rails. The carriage shuttles forward and than turns 90 degrees. The carriage shuttles forward to align with the next process to deliver the PCB. Once transferred, the carriage returns home to request another PCB. Features >Mitsubishi PLC program control >By-Pass mode + 90 degree turning conveyor (Available in clock wise or counter clock wise rotation, and by-pass mode.) >Motorized conveyor width adjustment >LED signal tower & Buzzer >Suitable for boards with many components on the bottom side >Closed –loop stepper motor providing the rotating driving power >SMEMA compatible Optional:   Motorized conveyor width adjustment Automatically conveyor width adjustment RS485 communication  Transfer heights 900mm+/-50mm Transfer direction Left to right Operation side Front of machine Fixed rail Front of machine Interface SMEMA Conveyor belts ESD flat belt PCB edge support 3mm Allowable components clearance Top 50 mm+ below 25mm PCB inverter cycle time Around 5s – 8s Air supply 4-6 bar Safety CE certificates Control PLC Voltage 220V/ 110V , single phase,       50-60Hz Specifications   TRC-460  Machine dimension 840mm *840mm *1250mm ( L*W*H) Weight 150KG PCB size 500mm *460mm
