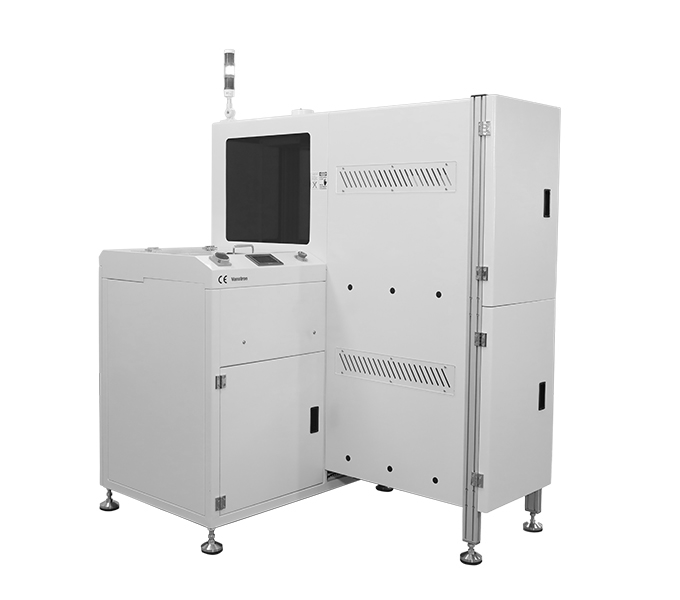

Coating line- magazine Unloader
Product Video
- Product Description
- Product Video
-
Description
This multi magazine unloader is design special for the coating line, all the machine will be with the seal cover and be equipped with the extraction for the vapors of the coating line
Features
Inline air extraction monitoring system
External air extraction stop alarm system.
Full seal cover to enhance the safety friendly working environment
Mitsubishi PLC program control
Selectable pitch settings : 10mm to 80mm
Tower-light display for machines working status.
Flexible platform to suit standard magazines
Exchangeable magazine from the rear of magazine
Stepper motorized type pusher to enhance working stability
Pusher position adjustable to Centre for the boards
Use the friendly touch screen panel
Magazine infeed and outfeed are automatically driving by motor on the platform.
SMEMA compatible
Transfer heights
900mm+/-50mm
Transfer direction
Left to right
Lifting platform (Max. weight loading)
Above 150kg
Magazine change over time
30s ( optional: 15s)
Operation side
Front of machine
Fixed rail
Front of machine
Interface
SMEMA
Conveyor belts
ESD flat belt
PCB edge support
3mm
Allowable components clearance
Top 80mm,down 40mm
Magazine capacity
Top 1+down 2+ middle 1
Air supply
4-6 bar
Safety
CE certificates
Control
PLC
Voltage
220V/ 110V , single phase,
50-60Hz
Specifications
Model
Max. PCB( L *W) MM
Min.PCB (MM)
Magazine size
SUL-250M-EC
330*250
50*50
355*320*563
SUL-330L-EC
440*330
460*400*563
SUL-390L-EC
530*390
535*460*570
SUL-460L-EC
535*460
535*530*570
